The Channel Master Antenna Rotator System is a complete solution designed to provide remote directional control of an outdoor antenna from inside the home or operating position.

The system consists of a heavy-duty outdoor drive unit and an indoor control box with handheld remote. Together, they allow users to rotate a mast or antenna up to 1.75 inches in diameter without manual adjustment.

The indoor control unit features internal memory capable of storing up to 69 preset directional positions. Once programmed, the user can recall a saved location by entering its assigned number, and the rotator will automatically turn to that position. This is especially useful for installations where broadcast towers are located in multiple directions.

The Channel Master Rotator System is commonly used with over-the-air television antennas to access stations from different markets using a single antenna. It is also widely used by amateur radio operators and hobbyists who require reliable remote mast rotation for directional antennas and other applications.

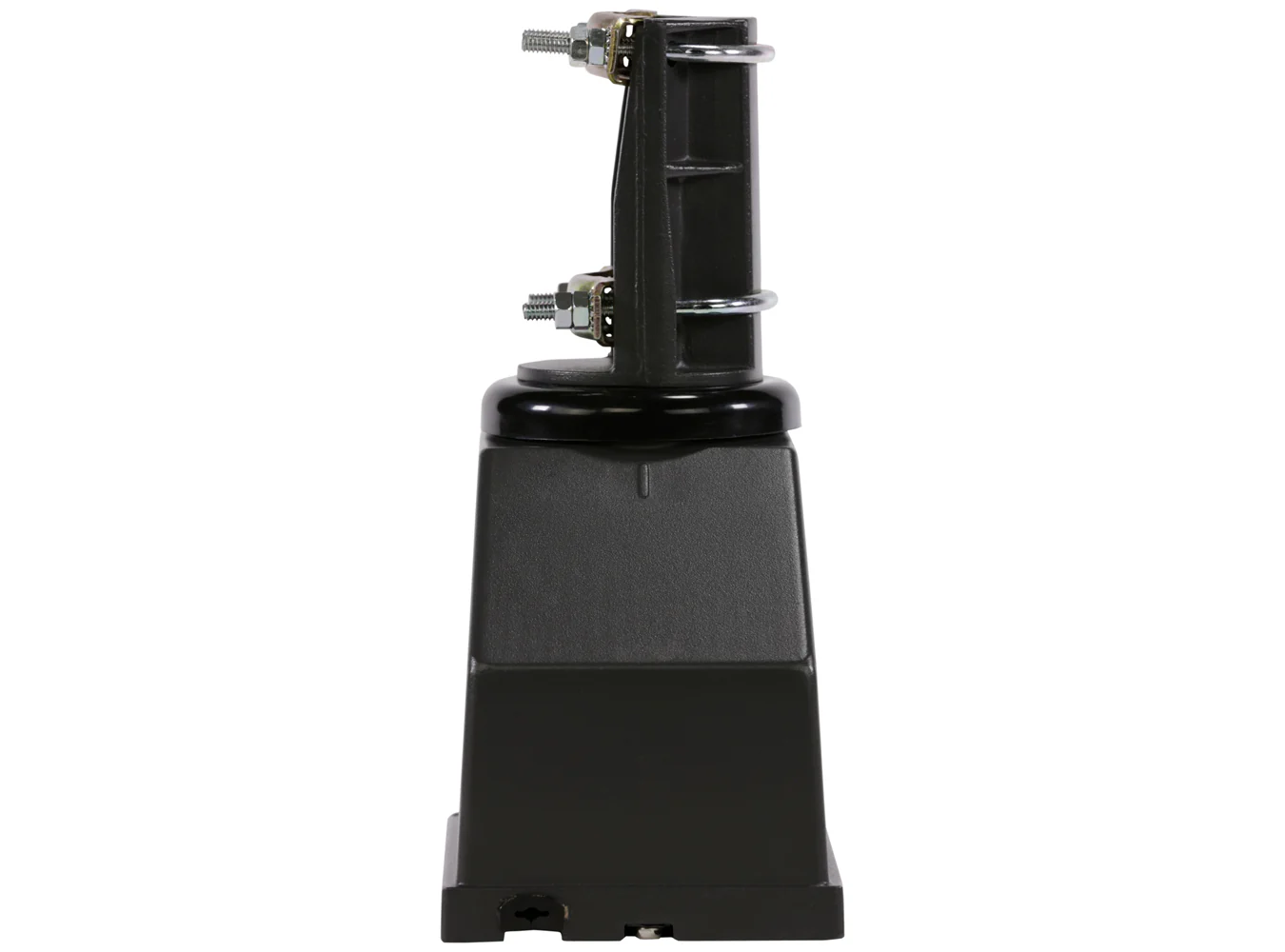

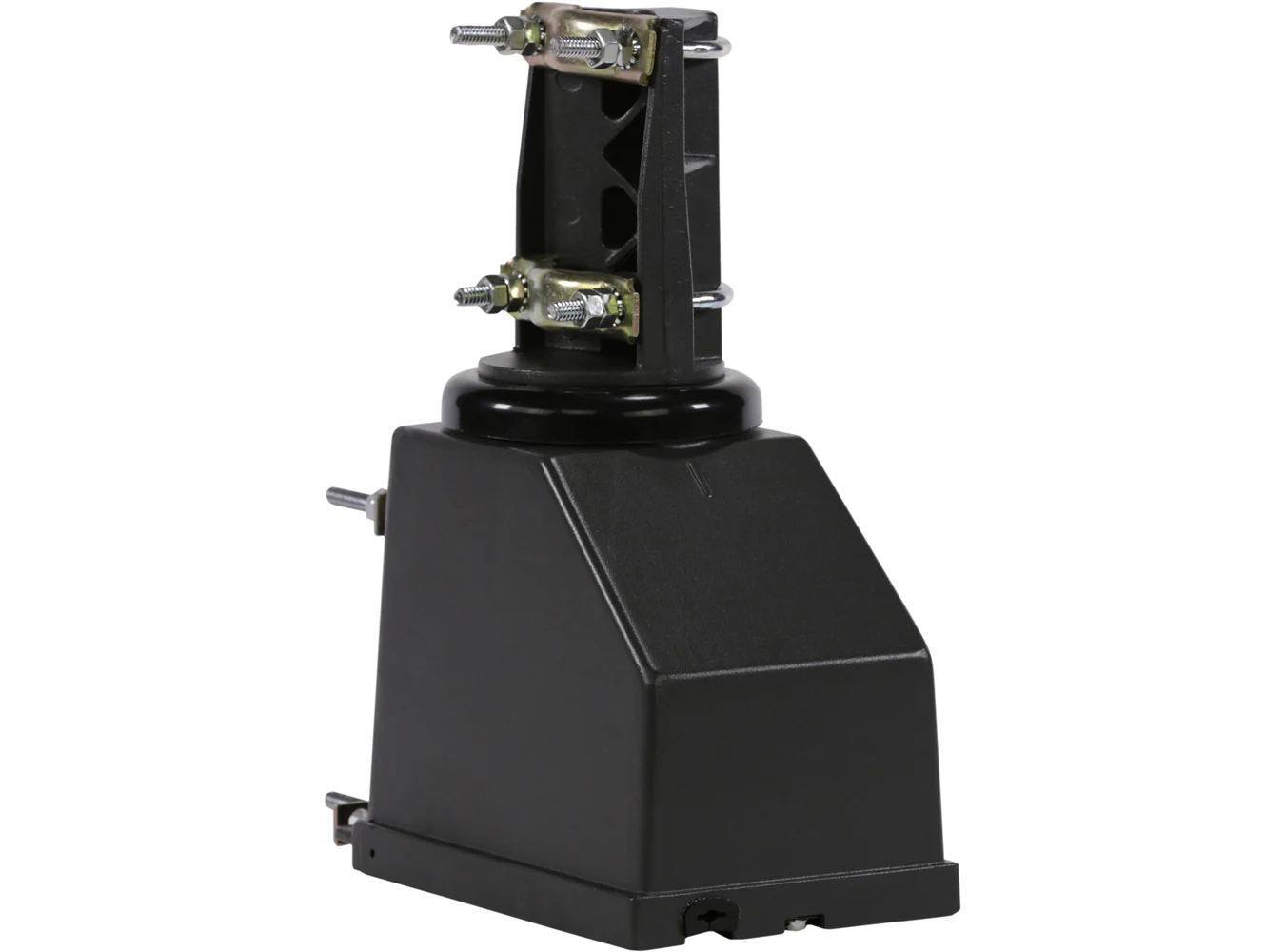

The outdoor drive unit is constructed with a heavy-duty powder-coated metal housing designed for long-term exposure. Internally, hardened steel gears and a high-performance electric motor provide dependable operation and support for larger antenna installations. Synthetic lubrication is used to promote smooth movement and consistent performance over time.

The motor and control unit connect via a 3-conductor control wire that carries operating voltage and directional control signals from the indoor unit to the outdoor drive assembly.
(Rotator wire not included.)

Designed for straightforward installation, the Channel Master Rotator System delivers reliable remote positioning for television, amateur radio, and other directional mast applications.
